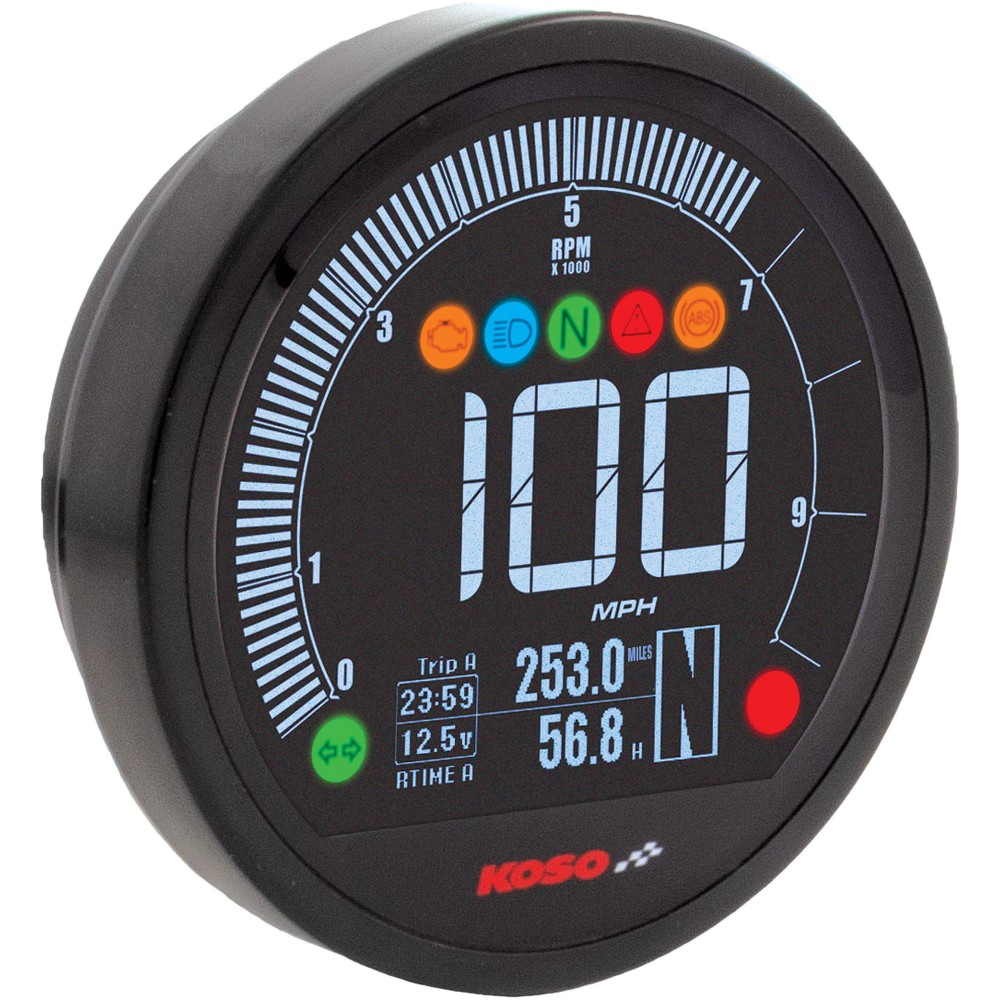

At DMG Motorsports, we present the KOSO DL-04 Universal Multifunction Meter, a modern black gauge designed to give riders essential motorcycle data in one easy-to-read display. This versatile meter combines speed, RPM, temperature, voltage, gear position, clock, trip, and maintenance information for a clean, capable dashboard upgrade. The exact product is identified by KOSO order number BA077300 and SKU 27-5923.

Features:

• Universal multifunction gauge with a modern negative LCD display
• Speedometer with a range up to 225 MPH or 360 km/h, switchable between units
• Tachometer with selectable ranges up to 10,000 or 15,000 RPM
• Total odometer and trip odometer functions
• Oil maintenance and service interval tracking
• Gear indicator for neutral and gears 1 through 6
• Temperature display from 32°F to 482°F (0°C to 250°C)
• Voltmeter display from 8.0V to 18.0V with low-voltage warning
• 12- or 24-hour clock format
• Operating-hours and hour-counter functions
• Maximum speed, RPM, temperature, voltage, and gear recording
• Adjustable backlight brightness
• Indicator lights for turn signal, engine warning, high beam, neutral, general warning, ABS, and speed warning
• 12V operation
• Black housing with approximately 96 mm diameter and 194.5 g weight
