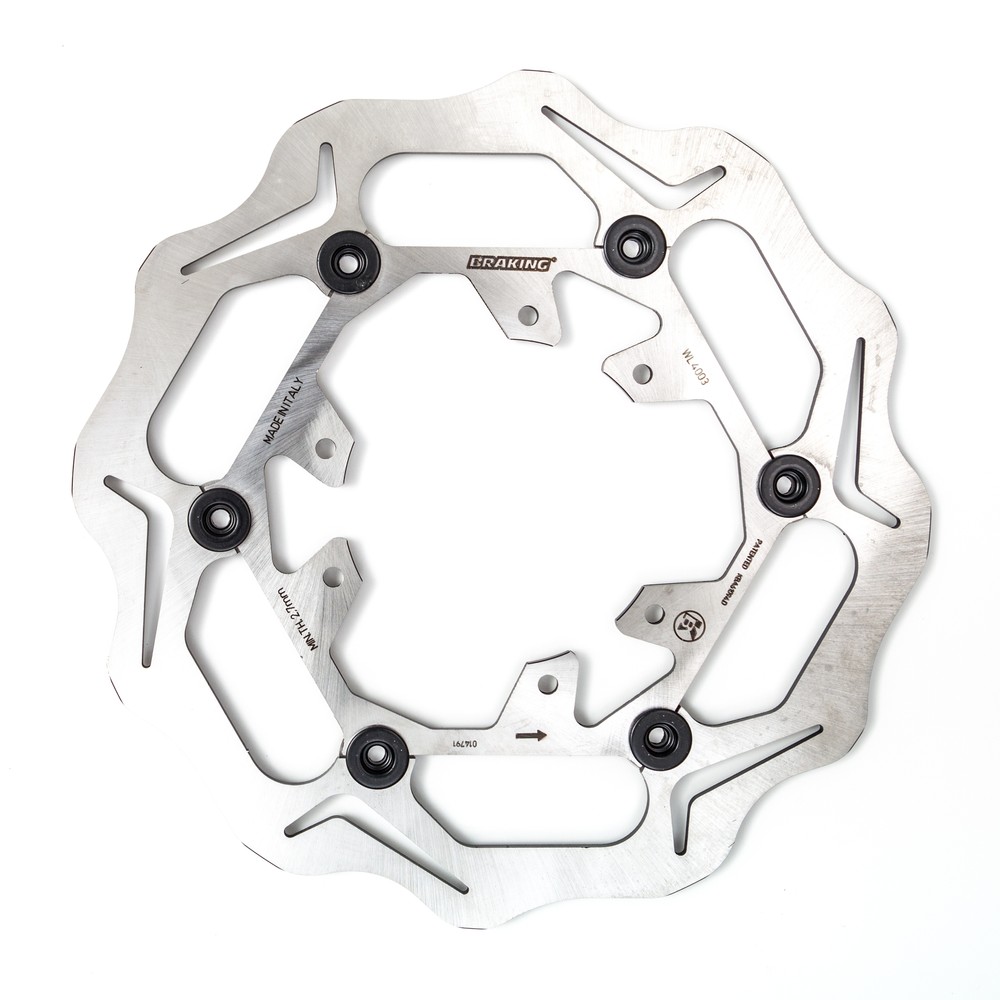

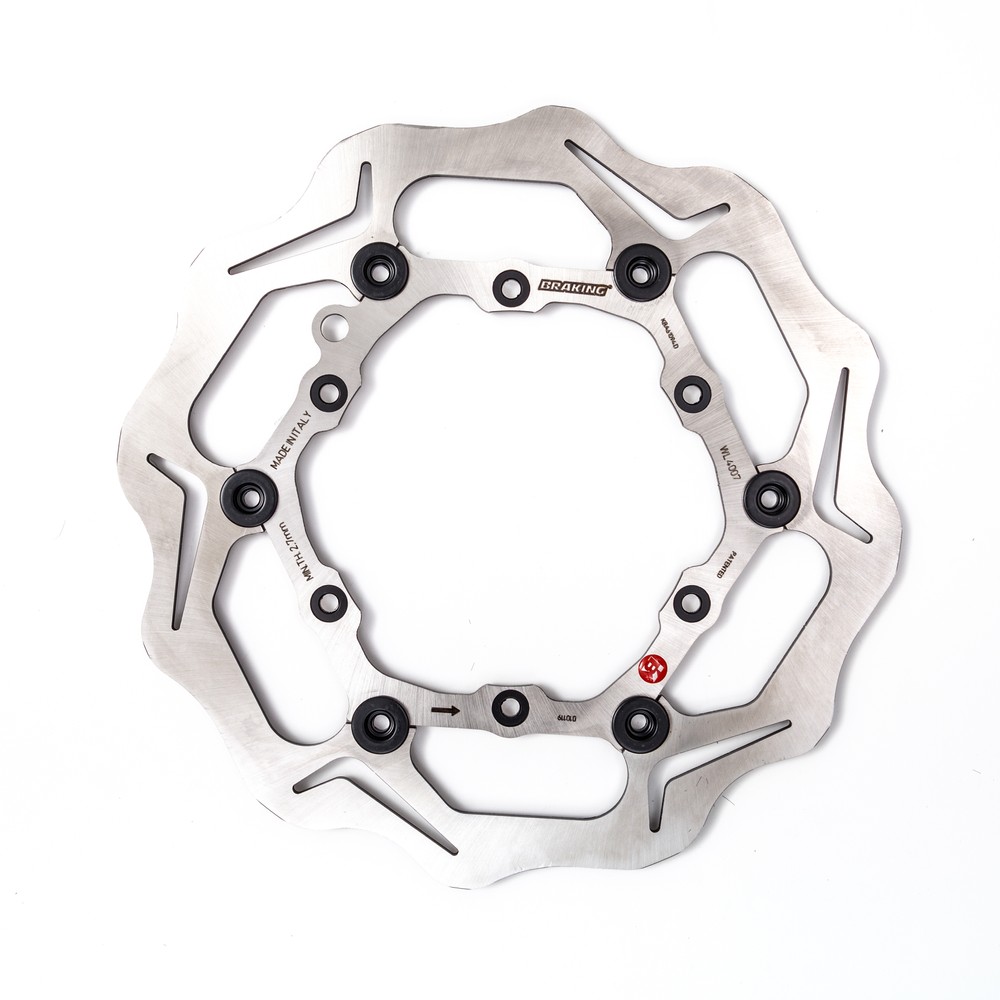

At DMG Motorsports, we present the BRAKING W-Flo Oversized Front Rotor Disk — the go-to upgrade for riders who demand more from their brakes. Available in the legendary Batfly 270mm profile (rotor only or full kit), this is BRAKING's premium wave-design floating rotor engineered to deliver a substantial increase in stopping power, dramatically improved brake feel, and precise modulation over stock. The 270mm oversized diameter provides greater leverage than a standard rotor, translating to more power and control with less lever effort — whether you're hammering through motocross motos or charging hard off-road trails. Built to BRAKING's exacting standards, the W-Flo is the upgrade that serious powersports riders trust.
Features:
- 270mm Oversized Diameter: Provides more leverage than stock for increased stopping power and improved brake feel with less effort.
- W-Flo Wave Friction Surface Design: Unique wave/Batfly profile friction surface delivers enhanced contact, consistent modulation, and cooler, cleaner braking.
- Floating Rotor Construction: Rotor floats to expand and contract as it heats up, preventing warping and ensuring the disk stays perfectly flat under hard use.
- Non-Round Outer & Inner Diameter Design: Both the outer and inner diameters feature a non-round profile that promotes better radial expansion of the rotor under extreme heat conditions.
- Self-Ventilating Batfly Grooves: The Batfly groove pattern on the disk's surface creates a self-ventilating mechanism that actively cools the rotor and keeps mud and dirt cleared from the pad surface and braking track.
- Fully Heat-Treated Disc Carrier: The carrier is fully heat-treated for maximum durability and long-lasting performance in demanding conditions.
- Highest-Quality Stainless Steel Construction: Rotor is constructed from high-quality stainless steel for strength, corrosion resistance, and reliable performance.
- Reduced Risk of Stone Obstructions: Thoughtful design minimizes the risk of debris becoming lodged, keeping braking performance consistent on the trail or track.
- Internationally Licensed Design: BRAKING's rotor design is covered by an international license, reflecting its proven, proprietary engineering.
- Kit Option Includes Caliper Relocation Bracket: The Batfly 270 Kit variant includes a precision CNC-machined 7075 billet aluminum caliper relocation bracket required to fit the oversized rotor — everything needed for a complete installation.
- Note: A correct caliper relocation bracket must be used to fit any oversized rotor. The bracket is included with the kit option; rotor-only option requires a separately sourced bracket.
